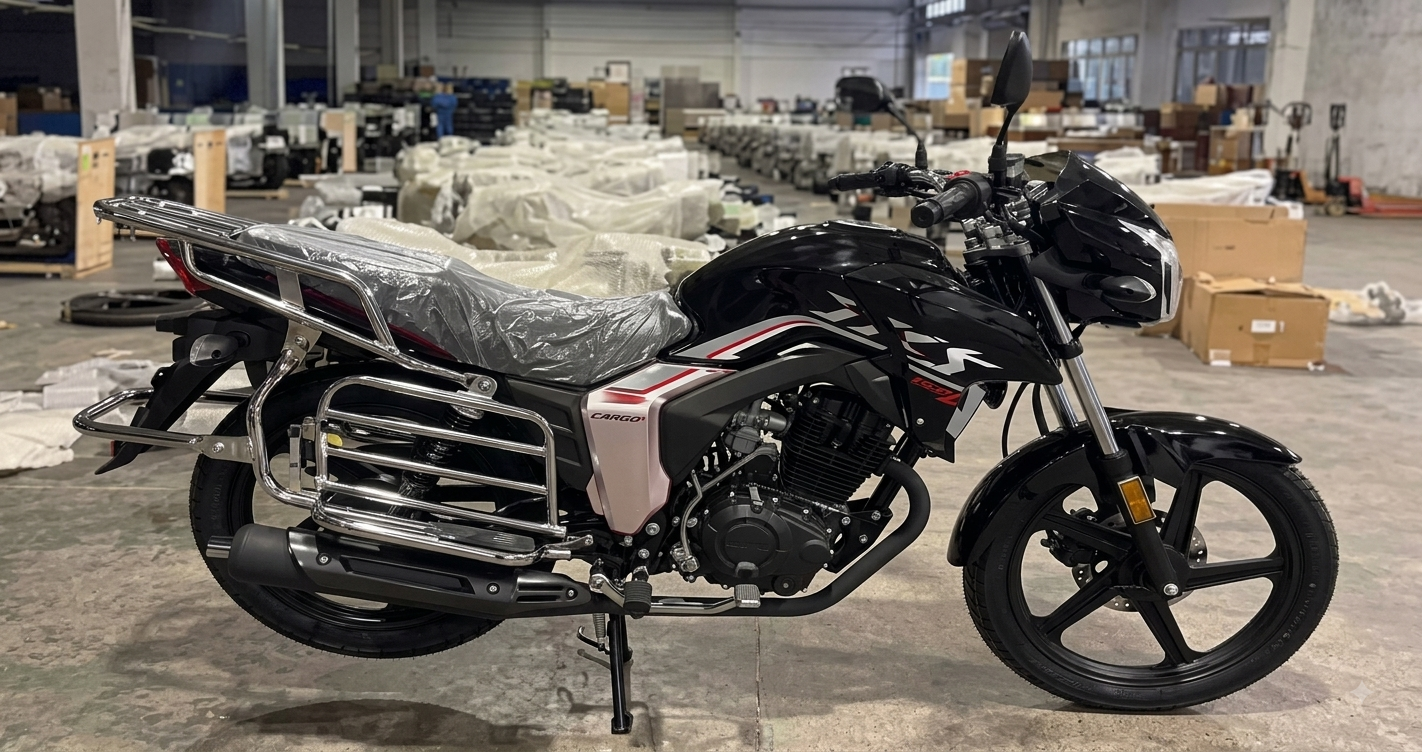

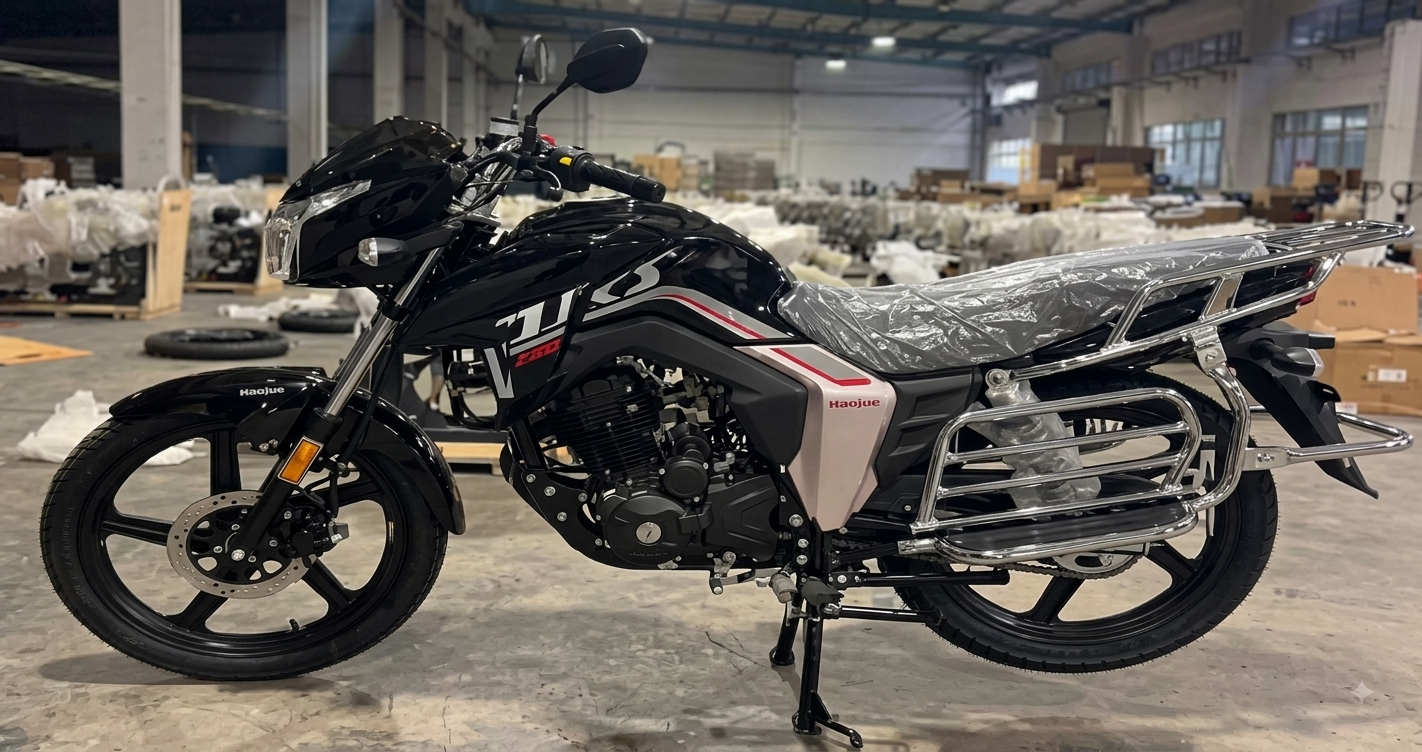

GD175
$50.00
The GD175 is a dependable 170cc 4-Stroke Motorcycle designed for daily commuting, practical mobility, and comfortable everyday riding. Its naturally air-cooled engine, 5-speed transmission, front and rear disc brakes, and tubeless tyres provide a balanced combination of performance, durability, and easy handling.
Key Features
- 170cc 4-Stroke Naturally Air-Cooled Engine
- Maximum Power: 6.2 kW (14 PS) @ 7,500 RPM
- Maximum Torque: 12.5 Nm @ 7,000 RPM
- 5-Speed Constant Mesh Transmission
- Front & Rear Disc Brakes
- Carburetor Fuel System
- Tubeless Front & Rear Tyres
- 6-Litre Fuel Tank
- 200 mm Ground Clearance
- 122 kg Kerb Weight
- LED Tail/Stop Lamp
Description
TEST 1
- Vulputate enim amet mattis nulla aliq
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Facilisis mauris silt eu volutpat odio
- Maecenas venenatis augue dui
Additional Information
Mus mauris vitae ultricies leo integer malesuada nunc vel. Ac felis donec et ec dui nunc matti odio pellentesque. Tincidunt augue interdum velit euismod in pellentesque massa placerat. Aenean euismod elementum ipsum a arcu nisi quis eleifend quam adipiscing.
Mus mauris vitae ultricies leo integer malesuada nunc vel. Ac felis donec et ec dui nunc matti odio pellentesque. Tincidunt augue
Review
Description
Technical Specifications
| Specification | Details |
|---|---|
| Engine Type | 4-Stroke, Naturally Air-Cooled |
| Engine Displacement | 170 cc |
| Bore | 62.5 mm |
| Compression Ratio | 9.8 ± 0.3 : 1 |
| Idle Speed | 1500 ±100 RPM |
| Maximum Power | 6.2 kW (14 PS) @ 7,500 RPM |
| Maximum Torque | 12.5 Nm @ 7,000 RPM |
| Ignition System | Carburetor |
| Spark Plug | Resistor Type |
| Spark Plug Gap | 0.7–0.8 mm |
| Transmission | 5-Speed Constant Mesh |
| Front Brake | Disc Brake |
| Rear Brake | Disc Brake |
| Fuel Tank Capacity | 6 Litres |
Dimensions
| Specification | Details |
|---|---|
| Overall Length | 2050 mm |
| Overall Width | 810 mm |
| Overall Height | 1090 mm |
| Wheelbase | 1200 mm |
| Ground Clearance | 200 mm |
| Kerb Weight | 122 kg |
| Gross Vehicle Weight | 272 kg |
Tyres
| Position | Size |
|---|---|
| Front | 2.75-18 46P Tubeless |
| Rear | 90/90-18 46P Tubeless |
Recommended Tyre Pressure
- Front: As recommended by the manufacturer
- Rear (Solo): 1.75 kgf/cm² (28.4 PSI)
- Rear (With Pillion): 1.75 kgf/cm² (28.4 PSI)
Electrical System
| Specification | Details |
|---|---|
| Electrical System | 12V AC |
| Battery | 12V 9Ah VRLA |
| Headlamp | 35/35W HS1 |
| Pilot Lamps | 5W × 2 |
| Tail/Stop Lamp | LED |
| Turn Signal Lamps | 5W × 4 |
| Neutral Indicator | Lamp & Light Fixture |
| High Beam Indicator | Lamp & Light Fixture |
| Turn Indicator | Lamp & Light Fixture |
| Side Stand Indicator | Lamp & Light Fixture |
| Speedometer Illumination | Lamp & Light Fixture |
| Low Battery Indicator | Lamp & Light Fixture |
| Malfunction Indicator | Lamp & Light Fixture |
| ABS Indicator | No |
| Rear Number Plate Lamp | 5W |
| Horn | 12V AC Voltage |
