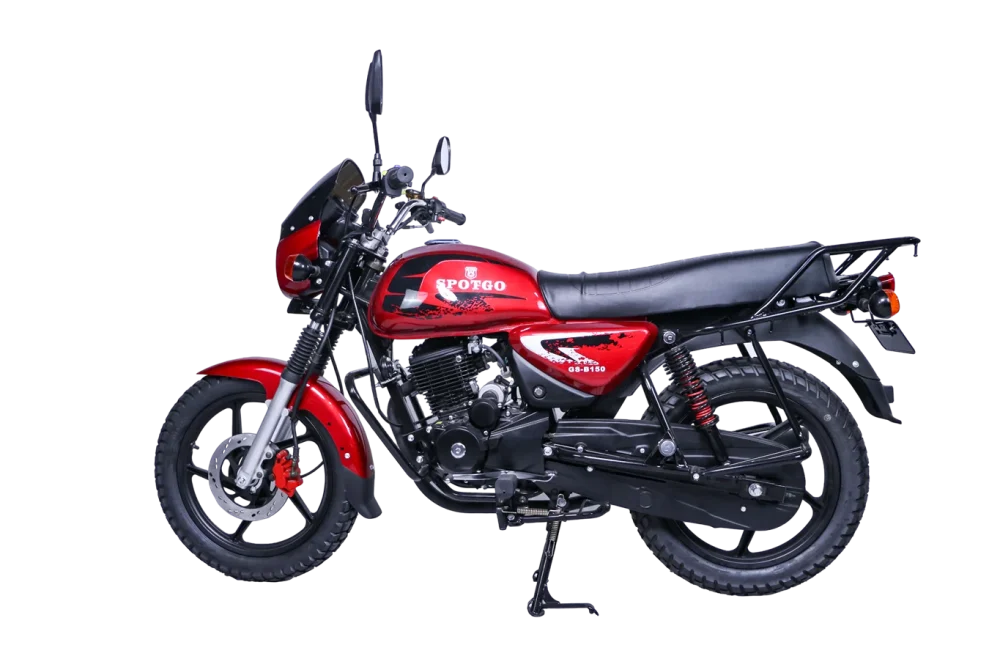

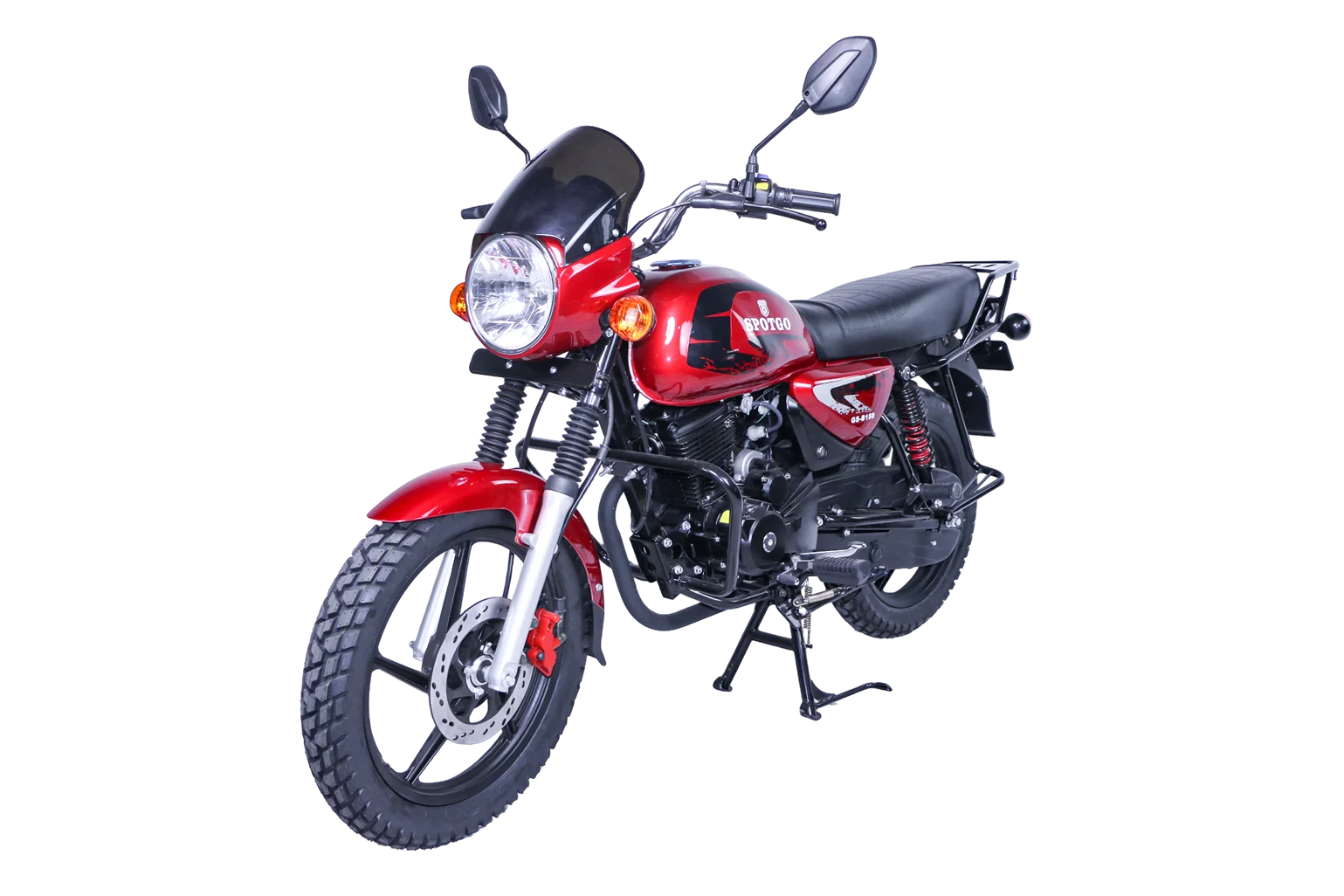

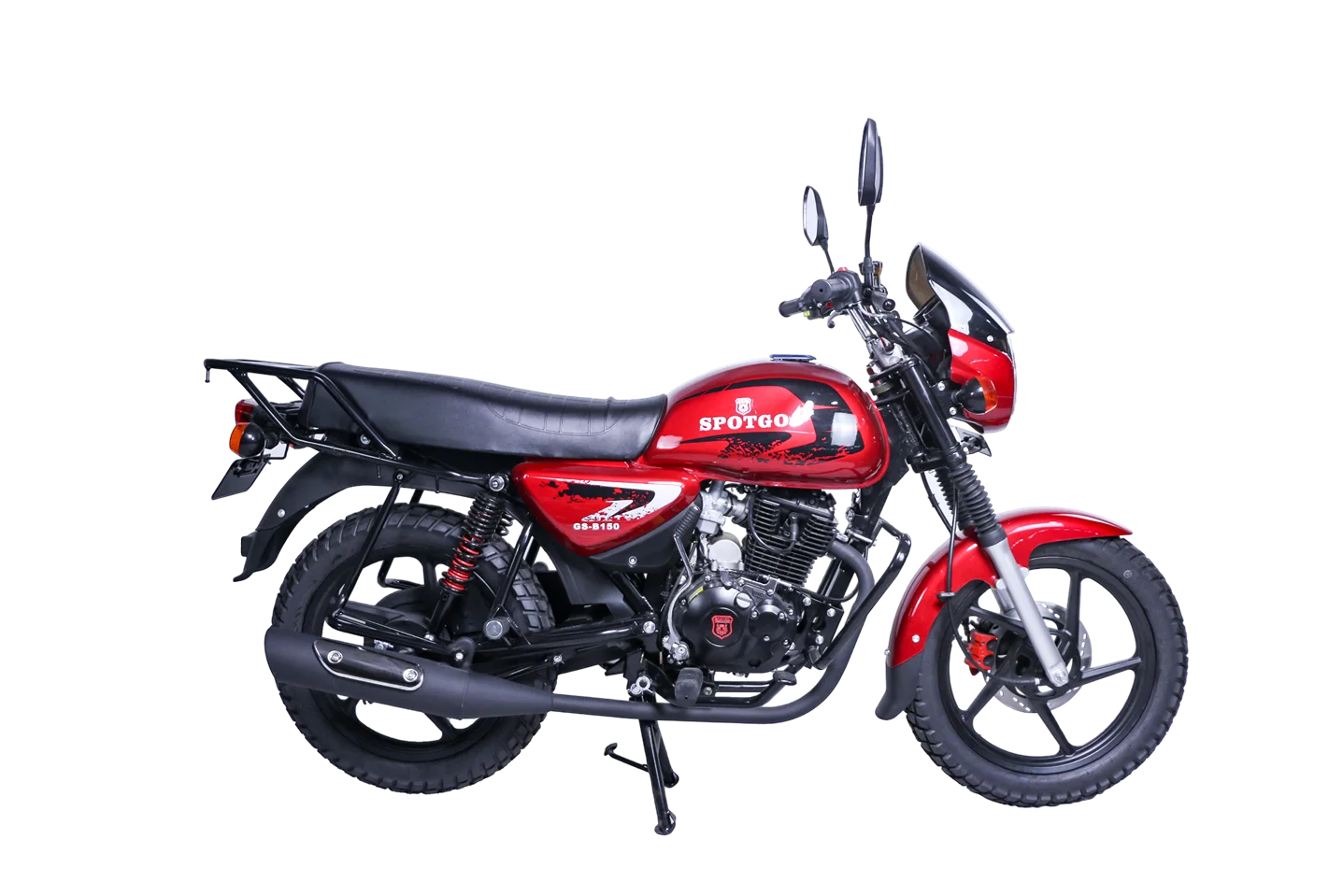

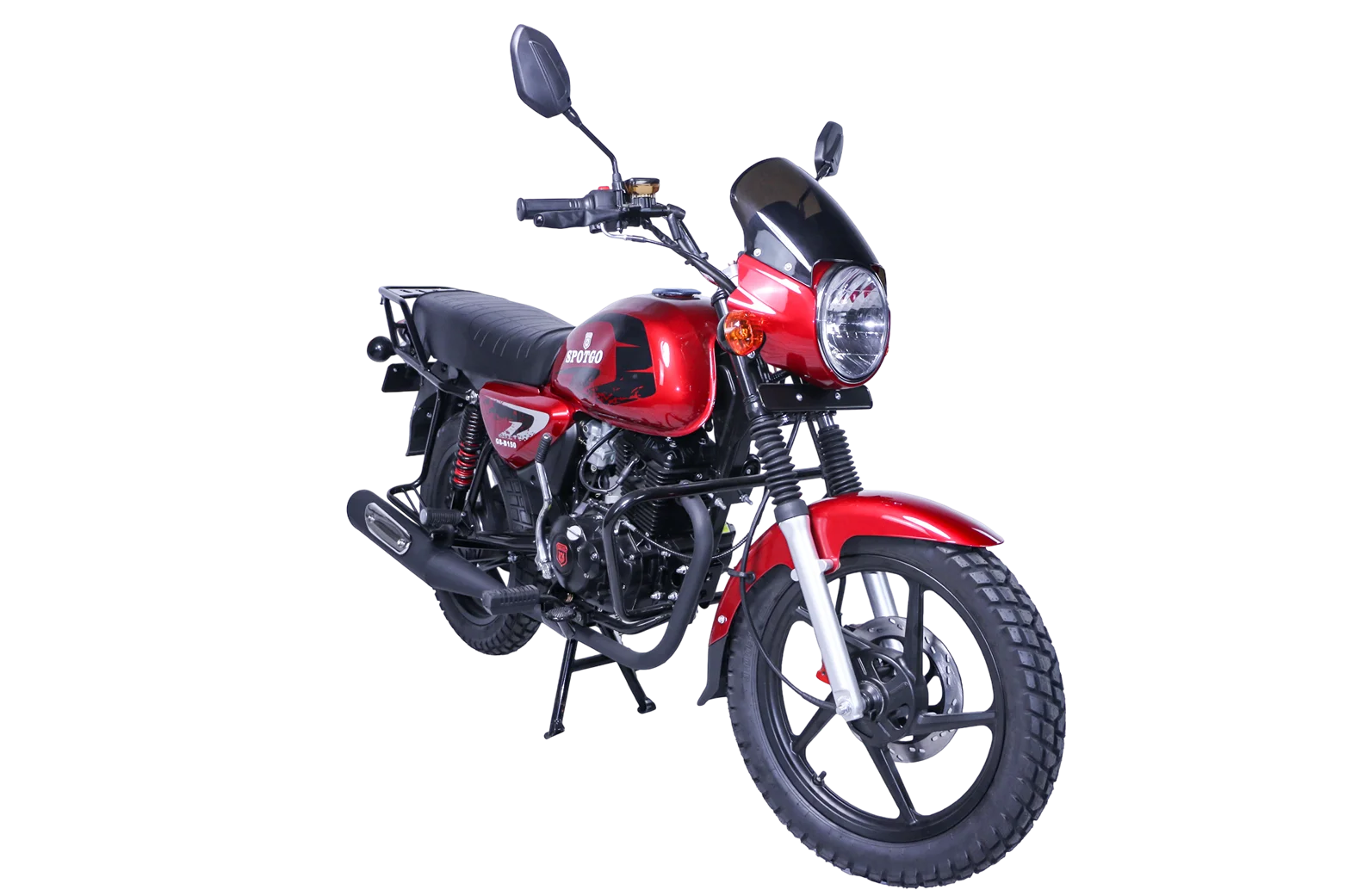

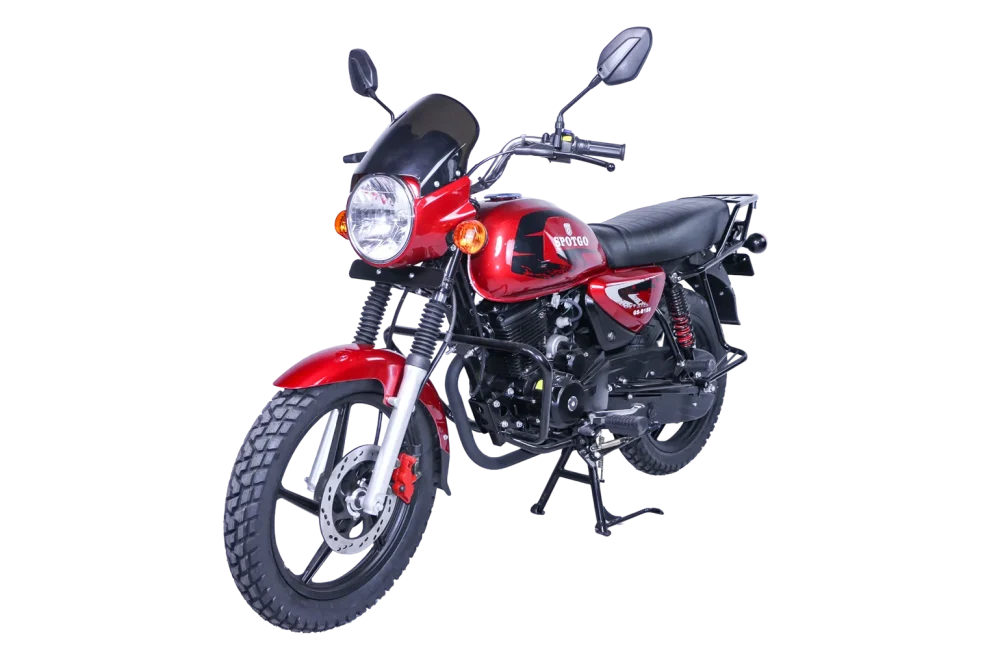

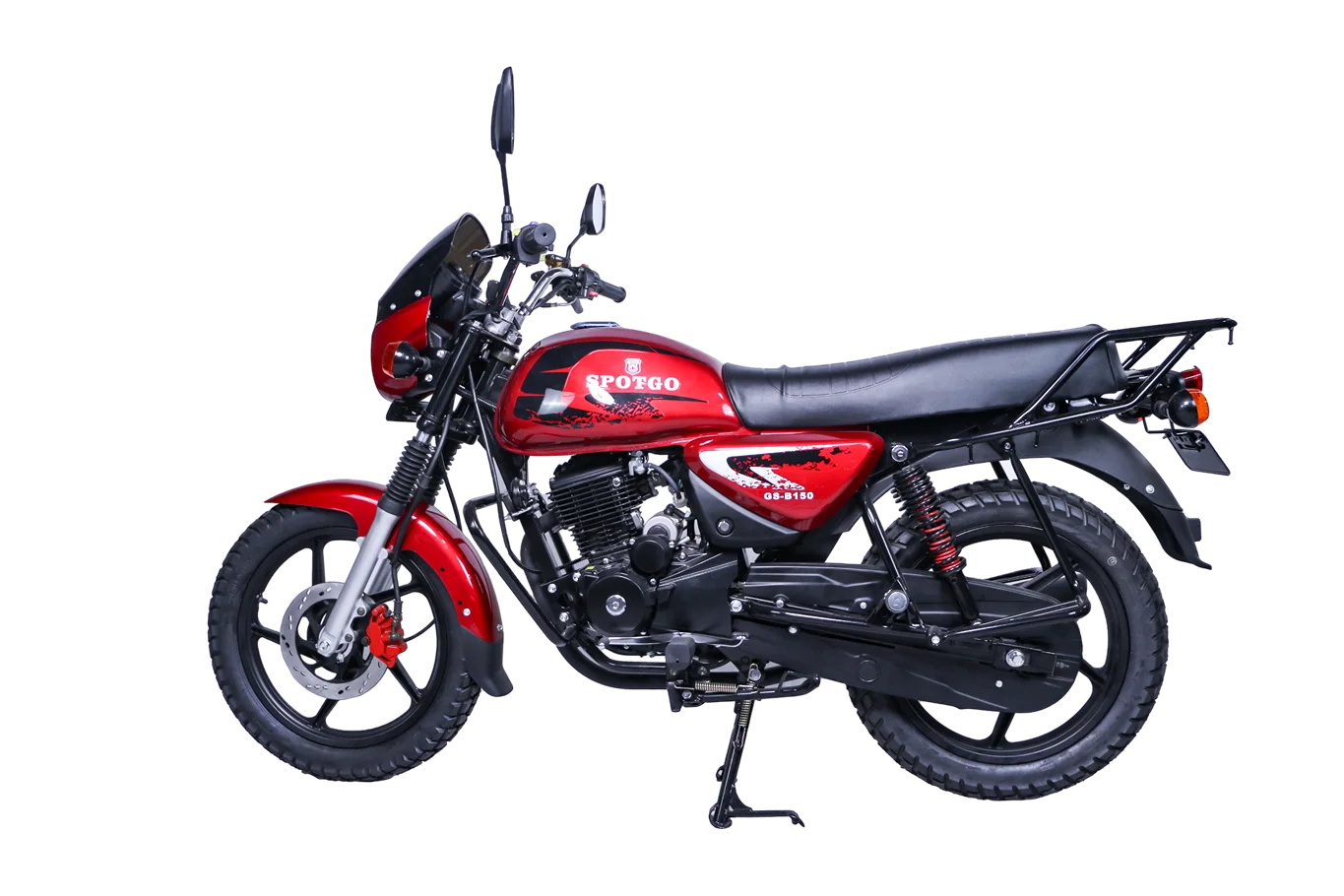

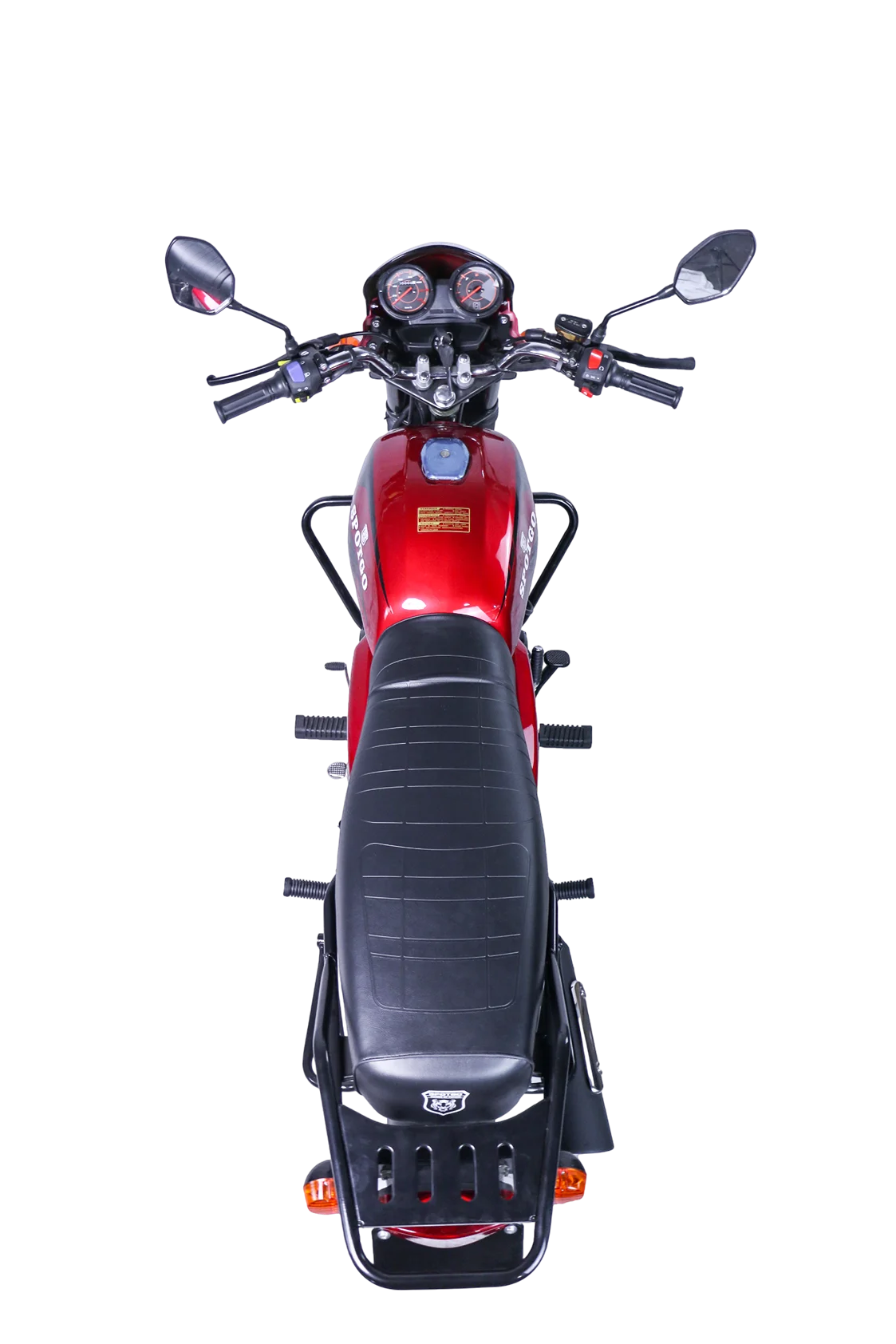

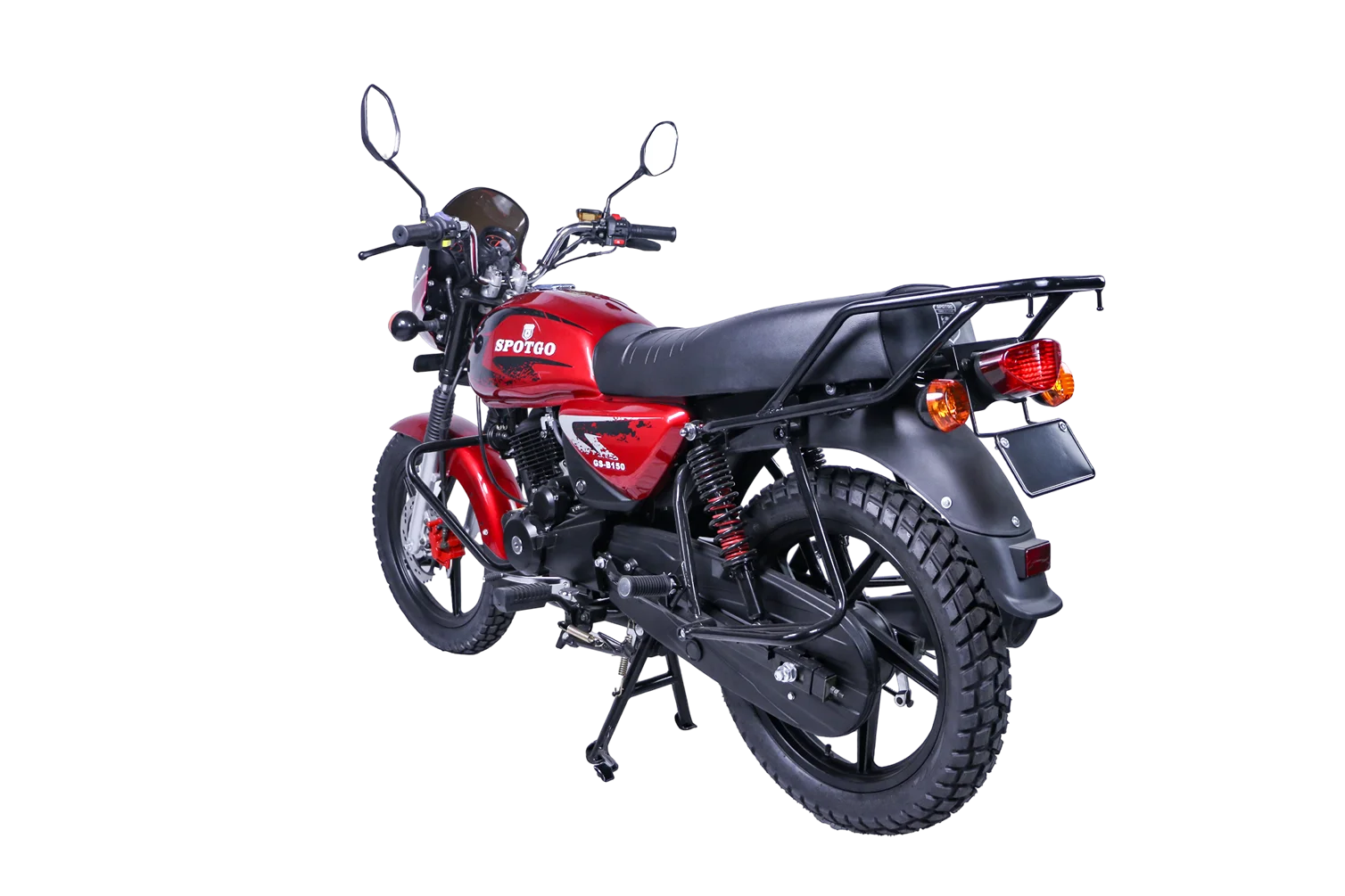

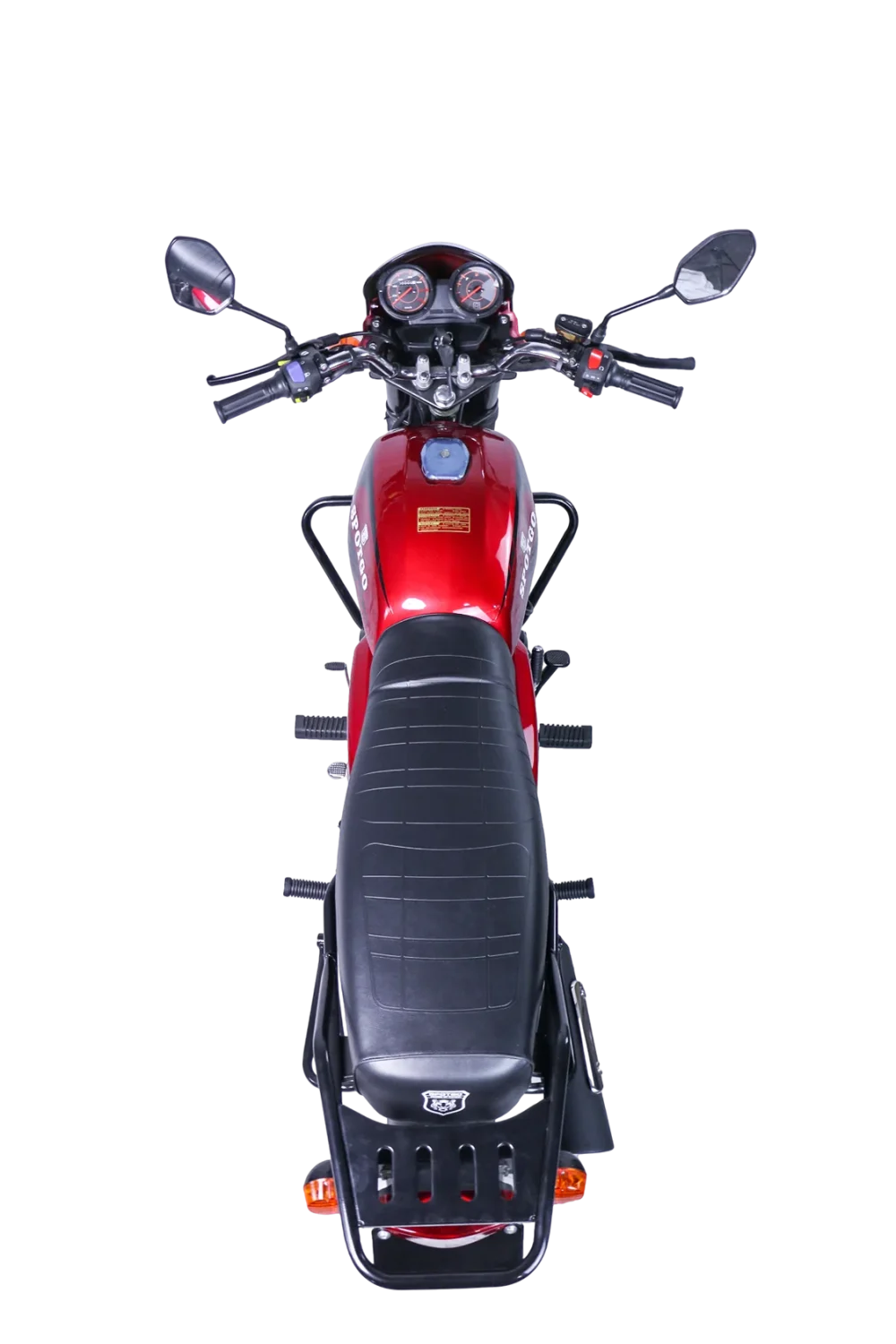

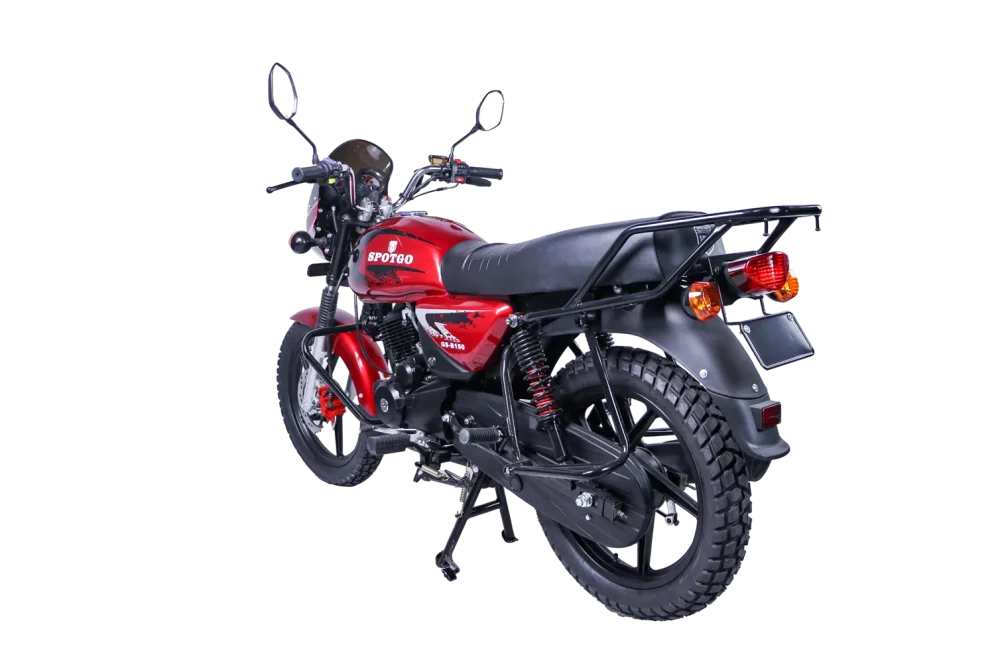

BOX GB150 Red
$60.00
This 169cc 4-Stroke Motorcycle is designed to deliver reliable performance, fuel efficiency, and everyday riding comfort. Built with a durable engine, modern braking system, and tubeless tyres, it is suitable for daily commuting as well as long-distance travel.
Key Features

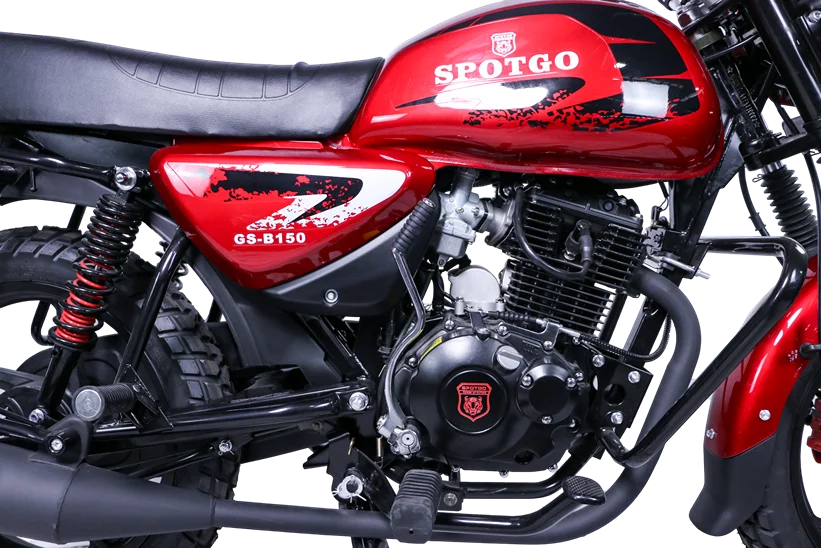

- Powerful 169cc 4-Stroke Air-Cooled Engine
- Maximum Power: 10 kW (14 PS) @ 8,500 RPM
- Maximum Torque: 12.5 Nm @ 7,000 RPM
- 5-Speed Constant Mesh Transmission
- Front & Rear Disc Brakes
- Electric Ignition System
- Tubeless Front & Rear Tyres
- 15-Litre Fuel Tank
- LED Lighting System
- 200 mm Ground Clearance
- Lightweight 115 kg Kerb Weight
Description
TEST 1
- Vulputate enim amet mattis nulla aliq
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Amet venenatis dignissim enim sit
- Facilisis mauris silt eu volutpat odio
- Maecenas venenatis augue dui
Additional Information
Mus mauris vitae ultricies leo integer malesuada nunc vel. Ac felis donec et ec dui nunc matti odio pellentesque. Tincidunt augue interdum velit euismod in pellentesque massa placerat. Aenean euismod elementum ipsum a arcu nisi quis eleifend quam adipiscing.
Mus mauris vitae ultricies leo integer malesuada nunc vel. Ac felis donec et ec dui nunc matti odio pellentesque. Tincidunt augue
Review
Description
Technical Specifications
| Specification | Details |
|---|---|
| Engine Type | 4-Stroke, Naturally Air-Cooled |
| Engine Displacement | 169 cc |
| Bore | 62 mm |
| Compression Ratio | 9 ± 0.5 : 1 |
| Idle Speed | 1400 ±100 RPM |
| Maximum Power | 10 kW (14 PS) @ 8,500 RPM |
| Maximum Torque | 12.5 Nm @ 7,000 RPM |
| Ignition System | Carburetor |
| Spark Plug | Resistor Type |
| Spark Plug Gap | 0.7–0.8 mm |
| Transmission | 5-Speed Constant Mesh |

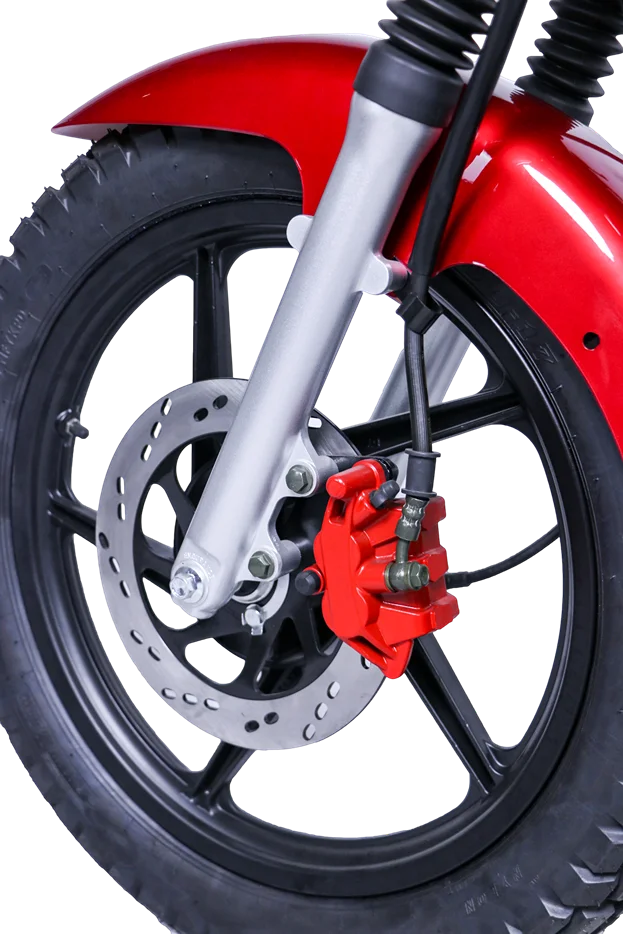

| Front Brake | Disc Brake |
| Rear Brake | Disc Brake |
| Fuel Tank Capacity | 15 Litres |
Dimensions
| Specification | Details |
|---|---|
| Overall Length | 2050 mm |
| Overall Width | 780 mm |
| Overall Height | 1080 mm |
| Wheelbase | 1260 mm |
| Ground Clearance | 200 mm |
| Kerb Weight | 115 kg |
| Gross Vehicle Weight | 295 kg |
Tyres
| Position | Size |
|---|---|
| Front | 3.00-17 46P Tubeless |
| Rear | 100/90-17 46P Tubeless |
Recommended Tyre Pressure
- Front: As recommended by manufacturer
- Rear (Solo): 1.75 kgf/cm² (28.4 PSI)
- Rear (With Pillion): 1.95 kgf/cm² (28.4 PSI)
Electrical System
| Specification | Details |
|---|---|
| Electrical System | 12V AC |
| Battery | 12V 7Ah VRLA |
| Headlamp | 35/35W HS1 |
| Pilot Lamps | 5W × 2 |
| Tail/Stop Lamp | LED |
| Turn Signal Lamps | 5W × 4 |
| Neutral Indicator | LED |
| High Beam Indicator | LED |
| Turn Indicator | LED |
| Side Stand Indicator | LED |
| Speedometer Illumination | LED |
| Low Battery Indicator | LED |
| Malfunction Indicator | LED |
| ABS Indicator | No |
| Rear Number Plate Lamp | 5W |
| Horn | 12V AC |
